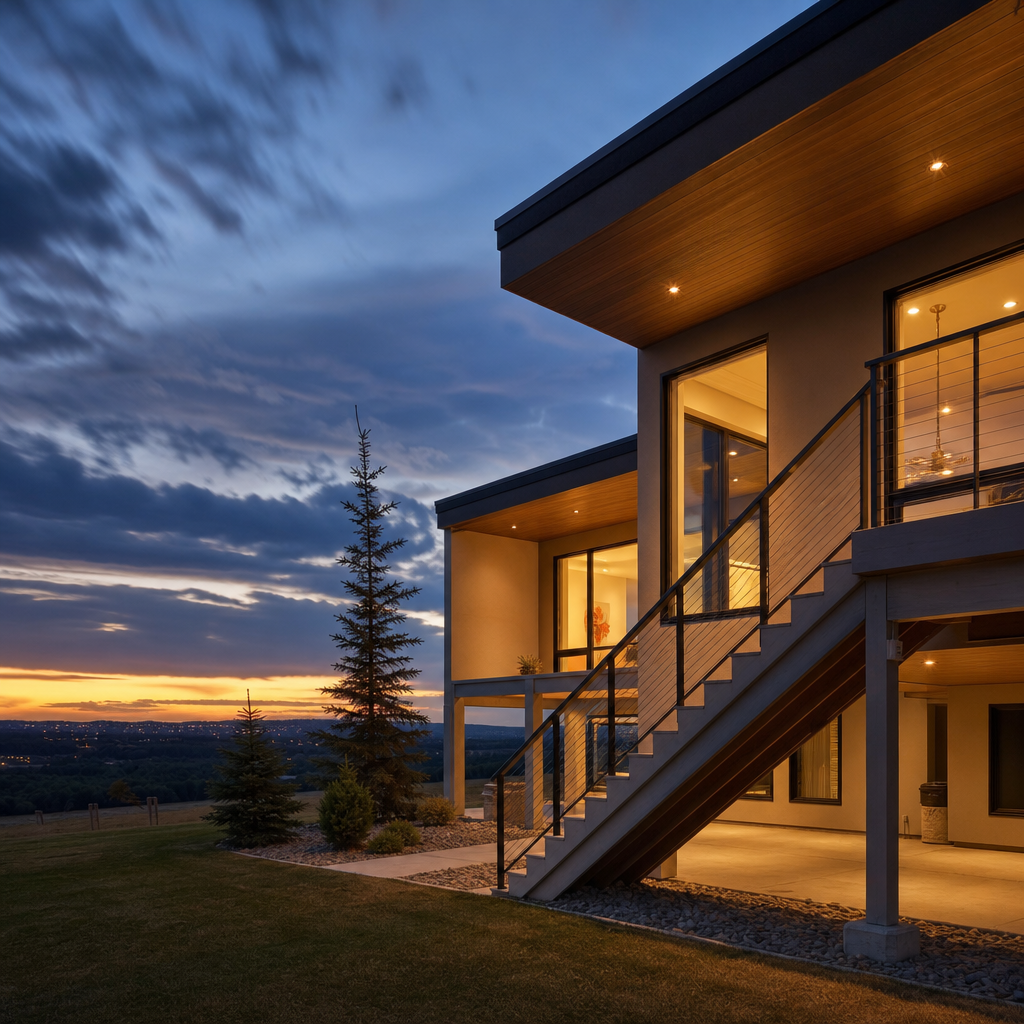

Open-side residential stair guards in Alberta are subject to some of the most stringent performance, dimensional, and safety requirements in contemporary Canadian building practice. NBC(AE) 2023-effective in Alberta since May 1, 2024-demands not only compliant heights and infill spacing, but also robust, verifiable connections to framing that withstand both review scrutiny and as-built inspection. Drafted construction documents must integrate detail and clarity in every aspect: code reference, dimensioning, fastening schedules, installation tolerances, and explanation of assemblies for both permit and site execution.

Detailing Guard Height and Opening Compliance under NBC(AE) 2023

Specific Code Requirements for Guards: Heights, Openings, and Load Paths

Section 9.8.8.1 through 9.8.8.6 of NBC(AE) 2023 now govern open-side guard requirements in Alberta. The code prescribes:

  • General guard height: 1,070 mm minimum for most guards
  • Dwelling unit guards: 900 mm minimum inside single dwellings and for exterior guards when the walking surface is not more than 1,800 mm above finished ground (NBC(AE) 9.8.8.3)
  • Stair guard measurement: Height measured vertically from the top of guard to a line drawn through the leading edge of treads (NBC(AE) 9.8.8.3(5))

“Drawings must dimension guard height from defined walking surfaces-including sloped guard conditions-referencing: ‘Guard height to be measured vertically from line drawn through leading edge of stair treads, per NBC(AE) 9.8.8.3(5).’”

Opening size is equally critical: no opening can allow passage of a sphere greater than 100 mm (NBC(AE) 9.8.8.5). Detail callouts are essential:

  • “ALL GUARD OPENINGS TO PREVENT PASSAGE OF 100mm SPHERE (NBC(AE) 9.8.8.5)” (commonly boxed and bolded near stair details)
  • For base-of-guard, “Triangular stair space formed by tread, riser, and bottom rail to prevent passage of 150mm sphere” if applicable

Load Capacity and Structural Design References

Guards must be designed to withstand horizontal linear and point loads:

  • 0.5 kN/m linear horizontal load at top within dwelling units and for up to two-dwelling exteriors (NBC(AE) 9.8.8.6(1)(b));
  • 1.0 kN concentrated load at any one point on the top of the guard (NBC(AE) 9.8.8.6(1)(c));
  • Vertical load: 1.5 kN/m at the top of guard (NBC(AE) 9.8.8.6(1)(a));
  • Balusters/infill: 0.5 kN applied over maximum 300 mm x 300 mm area

Plan reviewers routinely flag absent or incomplete load diagrams and missing references for structural guard design:

  • “Provide note: ‘Guards to be designed to resist 0.5 kN/m linear and 1.0 kN point horizontal loads per NBC(AE) 9.8.8.6’.”
  • Redline: “Section detail must show guard connections, post base, and fastener patterns dimensioned for load path.”

Dimensioning Guards on Drawings: Plan, Section, and Detail Sheet Conventions

Plans should use annotation standards such as:

  • Plan View: Cloud or hatch open guard location; tag as “GUARDRAIL 1070mm HIGH (NBC(AE) 9.8.8.3),” or “GUARD TO 900mm HIGH AT INTERIOR STAIR (NBC(AE) 9.8.8.3(5)).”
  • Stair Section: Leader from guard top to “900mm MIN. VERTICALLY FROM NOSING TO TOP OF GUARD (NBC(AE) 9.8.8.3(5))” with dimension line perpendicular to nosed line.
  • Details/Wall Sections: Enlarged view at stair and landing transitions, including both height and offset dimensions, and full callout: “OPENINGS AT GUARD TO PREVENT 100mm SPHERE (NBC(AE) 9.8.8.5).”

Dimensioning at sloped guards (i.e., stairs or ramps) requires the vertical measurement from the tread-nosing line, not the direct surface. Code notes should clarify: “Guard height dimensioned vertically from a line connecting tread nosings, NOT parallel to guard face.”

The definition of “walking surface” (NBC(AE)) applies across floors, landings, stairs, and ramps; drawing notes must indicate which surface denotes guard datum for height measurement to avoid ambiguity during framing and inspection.

Integrated Wood Framing Schedules and Details for Guard Post Anchorage

Blocking and Anchorage: Requirements and Drawing Implementation

Proper framing for guard post anchorage is a recurring focus of plan review. NBC(AE) 9.8.8.4 requires securement to resist guard loads outlined above. Critical details include:

  • Solid 2x Blocking: “2x8 KD SPF SOLID BLOCKING BETWEEN JOISTS AT ALL GUARD POST LOCATIONS, NAIL (2) 16d EA. END”-directly called out on architectural/structural details and blocking plans
  • Multi-ply Ledger Blocking for Open-edge Stairs: “(2) 2x8 SANDWICH BLOCK, GLUE & SCREW, POST TO BE THROUGH-BOLTED”-shown in stair carriage sections
  • Connection to I-Joist or Engineered Floor Systems: “PROVIDE MANUFACTURER-APPROVED METAL POST ANCHOR FOR I-JOIST FRAMING, FASTEN PER SCHEDULE, MIN. 4-1/2" LAG SCREWS”

Redlines frequently highlight lack of explicit anchorage detail: “No guard post blocking detail provided for open stair. Revise to show solid blocking and connection to rim joist, fastening schedule per code.”

Fastener Type, Schedules, and Material Grade Specifying

Drawing notes and schedules should declare both fastener type and placement and material grades. Examples from current Alberta plans:

  • “OUTDOOR APPLICATIONS: FASTENERS TO BE HOT-DIPPED GALVANIZED OR STAINLESS STEEL, TYPE 304, MIN. 3” LENGTH, ALL SCREWS TO PENETRATE 1-1/2" INTO BLOCKING (SEE FASTENING SCHEDULE, S2.1)”
  • “PRESSURE-TREATED WOOD AT ALL EXTERIOR GUARD POSTS (SPS 4.1.6, NBC(AE))-GRADE STAMP TO BE PRESENT”
  • “GUARD POSTS MIN. 4x4 PT SPF, SECURE WITH (2) 1/2" DIA. HDG THROUGH-BOLTS W/ WASHERS EACH END, TIGHTEN TO 32 Nm TORQUE.”

Framing and blocking details must be referenced directly from plan (e.g., “SEE DETAIL 5/A3.2 FOR GUARD POST BLOCKING/ANCHORAGE”), with enlarged views for stair edge, landing returns, or floor system transitions.

A sample fastening schedule table for exterior stair guards:

  • 4x4 PT Guard Post to 2x8 SPF Blocking: (2) 1/2" Ø galvanized bolts c/w washers
  • 2x8 SPF Blocking to Joist: 3” #10 Galv. Wood Screw @ 100 mm o/c, staggered
  • Metal Post Bracket to I-Joist Top Chord: Simpson IUS bracket or eq., (6x) M12 SDS Screws per mfr.

Engineering Integration and Plan Coordination

Open-side stair guards-especially on engineered floors-often require pre-engineered connectors with specific approval or an engineering stamp. Drawings should denote: “GUARD POST ANCHORAGE TO ENGINEERED FRAMING TO BE PER POST BRACKET MANUFACTURER’S APPROVED DETAIL OR ENGINEER DESIGN, PROVIDE LETTER OF COMPLIANCE ON REQUEST.”

Non-conformance here triggers permit delays per plan review comments: “Detail anchorage for guard posts at all framing changes-cannot defer to site solution.”

Connection Specifics for Guard Posts and Balusters

Fasteners and Hardware: Drafting Embedment, Size, and Type

Guard post, baluster, and panel connections must withstand code-mandated loads and suit the base material/metals. Current drafting standards in Alberta require:

  • Through-Bolted Wood Posts: “POST TO BE THROUGH-BOLTED (2X) 1/2” DIA. GALV. CARRIAGE BOLTS W/ WASHERS, EMBED FULLY THROUGH BLOCKING, NUT TIGHTENED TO 32 Nm”-enlarged detail with callout arrows
  • Lag Screw Attachment: “4x4 PT POST TO LEDGER: (2) 3/8” x 6” HDG LAG SCREWS @ 180mm O/C, MIN. 90mm EMBED INTO FRAMING (SOFTWOOD), PRE-DRILL 3/16”. CHECK MANUFACTURER INSTALLATION TORQUE: 45 Nm.”
  • Metal Base Plates: “STEEL POST BASE TO CONC. LANDING: (4) 10mm x 75mm HILTI KWIK BOLTS, MIN. 65mm EMBED INTO CONC., STAND-OFF BASE TO PREVENT ROT.”
  • Glass Guard Fittings: “1/2” TEMPERED SAFETY GLASS PANEL SET IN ENGINEERED CLAMP SYSTEM PER MFR., SS FASTENERS W/ VINYL ISOLATORS, GLASS EDGE 50mm MIN. FROM EDGE OF LANDING.”

Plan and Detail Sheet Notation for Hardware Installation

Every guard section drawing that expects hardware unique to the site (custom brackets, proprietary connections) must reference manufacturer requirements:

  • “INSTALL GUARD ANCHORS TO MFR. INSTRUCTIONS, SUBMIT DATA SHEET TO AHJ ON REQUEST.”
  • “TORQUE ALL BOLT CONNECTIONS TO 32 Nm MIN., VERIFY WITH TORQUE WRENCH PRIOR TO FINAL INSPECTION.”
  • “POST BASES SET PLUMB PRIOR TO FINAL FASTENING, SHIMMING AS NECESSARY; NO MORE THAN 2mm DEVIATION ALLOWED ALONG VISIBLE FACE.”

Material specs must reflect compatibility and longevity. Example callouts for Alberta climate:

  • “All hardware at exposed locations to be HDG or 304SS. Do NOT mix dissimilar metals at joints (avoids galvanic corrosion).”
  • “Wood post to aluminum baluster connections: Insert neoprene separation pad between dissimilar materials.”

Mixed material guards (e.g., glass panels between wood posts) require careful detail for concealed fasteners; plans should call out panel-capture extrusions, set screws, thermal shims, and identify locations with break-lines and “ENLARGED AT 6/A8.2.”

Plan review redlines highlight incomplete post anchorage and ambiguous fixing geometry: “Drawing must show post anchorage, not generic ‘typical’ note-revise with detail ref, fastener size, embed depth.”

Connection Performance and Engineering Notes

Post and infill manufacturers often provide ICC or CCMC approvals and torque/installation instructions. Embedding details and callouts in the drawing (by plan tag or notation) is essential to satisfy local requirements and ensure installer accountability.

For engineered or proprietary guard products, schedules should list:
MFR., product code, drawing reference, load rating, permitted fastener/fitting, installation notes, and an “Approved by building official” or “per engineered schedule” box.

Mitigating Plan Review Redlines and Jobsite RFIs for Open-Side Stair Guards

Common Plan Review Deficiencies (Blockings, References, Ambiguity)

Alberta plan reviewers routinely cite:

  • “NO BLOCKING DETAIL FOR GUARD POSTS @ STAIR-DETAIL REQUIRED, INDICATE CONNECTION TO FRAMING.”
  • “CODE SECTIONS NOT REFERENCED IN GUARD DETAILS-ADD NOTE: ‘CONFORMS TO NBC(AE) 9.8.8.3-6 AS APPLICABLE.’”
  • “FASTENER SCHEDULE AMBIGUOUS. SPECIFY FASTENER, SPACING, QUANTITIES.”

Mitigation at the drafting stage depends on precise detail referencing and robust note structure:

  • Each floor plan and section must have: “SEE A8.3 FOR TYP. GUARD POST BLOCKING AND ANCHORAGE, NOTES TO APPLY TO ALL GUARDS UNLESS NOTED OTHERWISE.”
  • All code critical notes should cite section: “ALL GUARDS/RAILS TO COMPLY WITH NBC(AE) 2023 SECTIONS 9.8.8.3 TO 9.8.8.6.”

Proactive Drawing Notes for Permit Review and Site Execution

Explicit draft notes provide a “paper trail” to prevent review/field confusion:

  • “GUARD POST LOCATIONS TO BE SHOWN ON FRAMING PLAN; BLOCKING INSTALLED PRIOR TO SUBFLOOR, SEE DETAIL 5/S2.1.”
  • “FASTENER SPACING, EMBEDMENT AND TORQUE TO BE CONFIRMED ON SITE-INSTALLER RESPONSIBLE FOR FINAL TIGHTENING.”
  • “MIN. GUARD POST SIZE 4x4 PT SPF, BALUSTER SPACING TO SUIT 100mm MAX OPENING.”

A plan review checklist incorporated into the drawings as a boxed note assists both municipal review and contractor review, e.g.:

  • GUARD HEIGHTS INDICATED AT ALL LOCATIONS __
  • OPENINGS CALLED OUT @ 100MM MAX __
  • STRUCTURAL BLOCKING/ANCHORAGE DETAILED __
  • FASTENER TYPE, SIZE, SPACING SHOWN __
  • CODE SECTIONS REFERENCED __

Jobsite RFI Mitigation: Plumbness, Tolerances, Alignment

Framers and finishers frequently submit RFIs on:

  • Post Plumbness: Deviation limits-plans should specify: “ALL GUARD POSTS TO BE INSTALLED PLUMB +/-2mm PER 1000mm HEIGHT.”
  • Spacing Tolerances: “BALUSTER SPACING TO PREVENT 100mm MAX (97mm O/C TO ALLOW FOR TOLERANCE, SEE DETAIL 3/A8.3). FINAL SPACING TO ACHIEVE MAX GAP UNDER LOAD PER NBC(AE) 9.8.8.5.”
  • Component Alignment: “TOP RAILS TO ALIGN AS CONTINUOUS SURFACE ACROSS POSTS AT TRANSITIONS, OFFSET TO ALLOW FOR POST CAP DIMENSION-SEE ELEV 4/A12.7.”

Project notes or site instruction details should be integrated into sheet A8.0 or equivalent: “CONTRACTOR TO REPORT INSTALLED GUARD HEIGHTS AND GAP DIMENSIONS TO DESIGNER IF OUTSIDE +/-5mm OF SPECIFIED; DO NOT COVER UNTIL INSPECTION.”

RFIs regarding conflicting dimensions (“post lands outside joist location, what solution?”) can be pre-empted by dimensioning guard layout both center-to-center and edge-to-edge, and by flagging “CONTRACTOR TO FIELD VERIFY FINAL POST LOCATION TO SUIT FRAMING; DO NOT OFFSET MORE THAN 20mm WITHOUT DESIGNER APPROVAL.”

Precision Dimensioning Strategies and Construction Tolerances for Guard Elements

Dimensioning Practices: Plans, Sections, and Dedicated Details

Accurate dimensioning is the backbone of code-compliant residential guard installation. Plan views should provide:

  • “TYPICAL NEWEL POST TO BE INSTALLED AT STAIR START/END, MIDPOINTS EXCEEDING 1800mm OR @ CHANGE OF DIRECTION-SEE PLAN FOR LOCATIONS, SPACING DIM’D C/C.”
  • “BALUSTERS @ 140mm O/C FOR 38mm WIDTH, PROVIDE 97mm NET CLEAR GAP TO ALLOW FOR MOSITURE MOVEMENT-SEE DETAIL 2/A8.4.”
  • “TOP RAIL OFFSET 30mm FROM WALKING SURFACE, GUARD HEIGHT MEASURED FROM TREAD NOSINGS-SEE SECT. 7/A12.1.”

Sections and elevations must indicate not just minimum heights, but actual dimension chains from finished walking surface or nosing line to top of guard; boxed and referenced as: “900mm MIN. FROM LINE DRAWN THROUGH LEADING EDGE OF TREADS, PER NBC(AE) 9.8.8.3(5).”

Connection details should dimension both hardware locations (“BOLT HOLE CENTERS 100mm MIN. FROM WOOD EDGE,” etc.) and critical clearances (“GLASS PANEL SET INTO BASE CHANNEL, 15mm CLEAR TO EDGE OF LANDING, MIN. 10mm PROVIDE FOR FLOOR FINISH ADDITION”).

Tolerances and Material Variability Allowances

Construction tolerances must be listed outright to bridge drafting-to-jobsite expectation:

  • “ALLOWABLE TOLERANCE FOR GUARD HEIGHT: +/-5mm @ FINAL FINISH.”
  • “BALUSTER SPACING: INSTALLED GAP NOT TO EXCEED 100mm INCLUDING ALL SEASONAL SHRINKAGE, RECOMMEND 97mm AS-BUILT TO ACCOUNT FOR WOOD MOVEMENT.”
  • “POST PLUMBNESS: MAX 2mm DEVIATION OVER 1M HEIGHT, VERIFY AFTER FASTENING.”

If the assembly involves full wall and stair finish overlays (e.g., drywall returns at stair), detail sheets must include: “ALLOW FOR 13mm GWB + 6mm SKIM COAT IN GUARD HEIGHT DIMENSION, FINAL HEIGHTS TO BE CHECKED PRIOR TO BALUSTER INSTALL.”

Material notes should specify moisture content for wood, e.g. “ALL SPF BLOCKING TO BE KD WITH MC <19% AT TIME OF INSTALLATION,” as per industry best practice.

Where glass or metal guards are used, precise glass clearances or bracket offsets must be dimensioned, with “DO NOT FIELD DRILL OR CUT GLASS, ALL CUTS/PENETRATIONS BY SUPPLIER.”

Incorporating and Managing Material and Site-Based Variations

Plans should note explicit instructions for field conditions likely to deviate:

  • “FINAL GUARD HEIGHT TO INCLUDE ALL HARDWOOD OR CARPET FINISHES; SHIM POSTS AS NECESSARY TO MAINTAIN +/-5mm TOLERANCE.”
  • “METAL GUARD COMPONENTS: ALLOW 2mm CLEARANCE FOR THERMAL EXPANSION/CONTRACTION-ANCHORS TO SLOTTED BASE PLATES WHERE SPECIFIED.”

Revised shop drawings may be required on multi-family or custom builds; drawing sheets should include:

  • “AS-BUILT GUARD LOCATIONS AND DIMENSIONS TO BE SUBMITTED BY FRAMER PRIOR TO FINAL FINISH.”
  • “SHIM OR ADJUST GUARD HARDWARE TO ACHIEVE CODE HEIGHTS AS REQUIRED BY FINISH TOLERANCES-SEE PLAN AND DETAIL NOTES.”

Plan reviewers want to see evidence that dimensions and tolerances have been considered in design, and that final as-built conditions will comply with code despite normal construction variation.

Failures here trigger costly remediation; for example: “Post-installed guard height below 900mm after floor covering-removal and reinstallation required at owner expense.”

Conclusion

Effective guard design in Alberta integrates drawing clarity, robust anchorage detail, explicit dimensioning, and material tolerance strategies to ensure code compliance through both permit and field inspection. NBC(AE) 2023 standards demand careful coordination of plan annotations, enlarged hardware details, and proactive communication-framing each guard as a system rather than a mere accessory. By embedding explicit code references, comprehensive fastening schedules, and field-verified dimensioning, permit redlines are minimized and site RFIs answered before they arise. The result is safer homes, fewer delays, and a collaborative pathway from design intent to built safety-an approach delivered by Kingsway Drafting & Design on every project.
